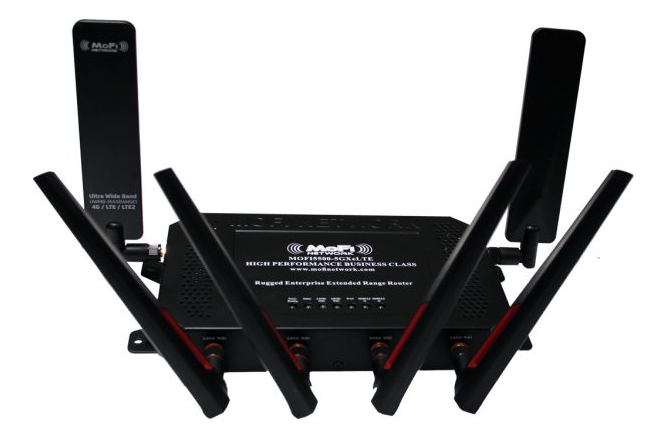

MOFI5500 MAIN FEATURES

• Built in 4G/LTE/Advanced LTE CAT7 Cellular Embedded Modem (EM7411 from Sierra Wireless) with support for multiple LTE bands including support for 2 x carrier aggregation(Can put a sim card in providing you get a plan that you provider will allow to use)Note you will need to get the SIM card and plan to use with this.
• Includes support for the new LTE bands 14, 66 and 71 and much more.
• Includes all features of our previous routers that allow full control such as band lock, ISP TTL setting changes and much more.
• This model can only use 1 SIM card but we also offer another model MOF5500-5GXeLTE-EM7411-DUAL if you want the option to run 2 SIM cards at the same time.
• Offer WiFi 2.4Ghz up to 600MHz and WiFi AC up to 1734mb/s with ranges to over 8000 SQ Feet.Includes special signal amplifiers built into each WiFi chip on the board that allows the WiFi signal the fastest and best range possibleIncludes 4 x Premium WiFi Antennas that can operate on both 2.4Ghz and 5.0GHz Simultaneously
• LAN and WAN Speeds up to 1000 Mb/s (GIGABIT)
• Rugged Metal Design that will protect the router from physical damage as well makes it dissipate heat better.
• Advanced bandwidth monitoring, speed, bandwidth limits and restriction options
• Ability to see signal as well as to force a specific band if available to prevent unintentional band hopping
• Wall mountable small rugged metal design great for RV’s, ATMs, Kiosks, Buses, Taxi Cabs & many other applications that require a stable internet connection with watchdog mission critical performance
• Remote Central Fleet Management Cloud Interface that works on private IP’s as well
• Wireless Bride/Repeater mode to extend your wireless range and/or have the ability to use an Ethernet connection with any WiFi signal including those from a hotspot device
• Mofi to Mofi VPN mode to allow a secure encrypted connection between offices.
• Ability to assign a static public IP address for any device that requires one (many providers do not give you a public IP address and you will need this for your DVR or anything that you need a direct connection from the outside.
• Full bandwidth monitoring where you can view the usage of every device connected and have ability to limit bandwidth/speed and other advance functions
• Parental screen to set automatic limit or access by time on any device connected
• Virtual Private Network (VPN) + OPENSWAN IPSec and OpenVPN Support
• Multi-Wan with fail safe (if one connection fails, can set to auto connect to another)
• WiFi Fail Over (great for boater or anyone that gets free WiFi and only use 4G/LTE when not in range)
• Fail Safe Boot Loader than can restore router on bad flash or failed firmware update
• Full Advance Quality of Service (QOS Support)
• Dynamic DNS full support including customized option
• True DMZ not Pseudo DMZ Zone
• True IP-Pass-Through VPN Services & Termination – Device to Cisco, Linux, Juniper IPSec, L2TP & more Standalone VPN & DHCP Server


• Internal Module Specs: NOTE THIS IS NOT A 5G ROUTER This item is made to work in North America but may also work in many other countries around the world. For North America, no need to check the bands but if using outside Canada/USA, check the band support for compatibility.
• LTE Category 7: 300Mbps DL, 150Mbps UL
• Supports up to 2 x Carrier Aggregation
• HSPA+: 42Mbps DL, 5.76 UL
• TD-HSDPA/HSUPA: 2.8Mbps DL, 2.2Mbps UL
• EDGE: Multi Slot Class 12 236.8 kbps DL & UL
• GPRS: Multi Slot Class 10 85.6 kbps DL & UL
•  Frequency Bands: B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B41, B42, B43, B48, B66, B71
•  External Connectors
• 1 x DC Jack for Power Input (110-220V input, 12V DC output, 12-30VDC Range Input) (Recommended inline fuse for vehicle installations: 3A fast-blow) Includes a 12volts output 3.5AMPS UL fully certified power adapter
• 4 x RJ45 for LAN ports 10/100/1000 GIGABIT (can be used as multi WAN ports)
• 1 x RJ45 for WAN port 10/100/1000 GIGABIT (can be used as a LAN port)
• 1 x Read USB 2.0 Port + 1 x SIDE USB 3.0 Port
• 1 x Factory Default Reset Button
• 4 x 5 dBi Premium External SMA Antennas for WiFi
• 2 x 5 dBi Premium Wide Band External SMA Antennas for 3G/4G/LTE cellular signal
• 1 x 2FF SIM Slot (full size SIM card), You must get SIM card from provider or current device (SIM Card Adapter Kit Available and might be Included in Package) Physical Dimension
• 260 mm x 140 mm x 33 mm (10in x 5.5in x 1.3in)
• Weight 340gram or 1.6 lb




MOFI6500 MAIN FEATURES

• Can get both 4G/LTE and 5G Bands (if you don’t have a 5G plan, you can still use this for the fastest LTE speeds possible)
• Built in 4G/LTE/Advanced LTE CAT19 Cellular Embedded Modem (RM520 from Quectel) with support for multiple LTE bands including support for carrier aggregation all over the world.
• Compatible with most of the 4G/LTE networks worldwide – USA, Canada, Mexico, UK, Australia, India, Russia, Spain, Germany and almost every other countries)
• (Can put a sim card in providing you get a plan that you provider will allow to use), Note you will need to get the SIM card and plan to use with this.
• 5 x Carrier Aggregation!!!
• LED Kill Switch at the back to turn off all LED lights on the front so unit does not flash bright, great for RV’s
• Includes support for the new LTE bands 14, 66 and 71 and much more.
• Includes all features of our previous routers that allow full control such as band lock, ISP TTL setting changes and much more.
• This model can only use 1 SIM card at a time but has 2 SIM Slots where you can select which SIM slot that you want to use
• Offer WiFi 2.4Ghz up to 600MHz and Wi-Fi6 up to 2,975 mb/s with ranges to over 8000 SQ Feet.
• Includes special signal amplifiers built into each WiFi chip on the board that allows the WiFi signal the fastest and best range possible
• Includes 5 x Premium WiFi Antennas that can operate on both 2.4Ghz and 5GHz using WiFi6 technology
• LAN and WAN Speeds up to 1000 mb/s (GIGABIT)
• Rugged Metal Design that will protect the router from physical damage as well makes it dissipate heat better.
• Advanced bandwidth monitoring, speed, bandwidth limits and restriction options
• Ability to see signal as well as to force a specific band if available to prevent unintentional band hopping
• Wall mountable small rugged metal design great for RV’s, ATMs, Kiosks, Buses, Taxi Cabs & manyother applications that require a stable internet connection with watchdog mission critical performance
• Remote Central Fleet Management Cloud Interface that works on private IP’s as well
• Wireless Bride/Repeater (WiFi as WAN) mode to extend your wireless range and/or have the ability to use an Ethernet connection with any WiFi signal including those from a hotspot device
• Mofi to Mofi VPN mode to allow a secure encrypted connection between offices.
• Ability to assign a static public IP address for any device that requires one (many providers do not give you a public IP address and you will need this for your DVR or anything that you need a direct connection from the outside.
• Full bandwidth monitoring where you can view the usage of every device connected and have ability to limit bandwidth/speed and other advance functions
• Virtual Private Network (VPN) + OPENSWAN IPSec and OpenVPN Support
• Multi-Wan with fail safe (if one connection fails, can set to auto connect to another)
• WiFi Fail Over (great for boater or anyone that gets free WiFi and only use 4G/LTE when not in range)
• Fail Safe Boot Loader than can restore router on bad flash or failed firmware update
• Full Advance Quality of Service (QOS Support)
• Dynamic DNS full support including customized option
• True DMZ not Pseudo DMZ Zone
• True IP-Pass-Through (Bridge Mode) to allow use with of other routers, firewall and other devices to avoid conflicts.
• VPN Services & Termination – Device to Cisco, Linux, Juniper IPSec, L2TP & more
• Standalone VPN & DHCP Server

Internal Module Specs:

•  This item is made to work in anywhere on the planet! 5G/LTE Category 19:
•  SA data rates: 2.4Gbps (DL) / 900Mbps (UL)
• NSA data rates: 3.4Gbps (DL) / 550Mbps (UL)5 x Carrier Aggregations
• HSPA+: 42Mbps DL, 5.76 UL
• TD-HSDPA/HSUPA: 2.8Mbps DL, 2.2Mbps UL
• EDGE: Multi Slot Class 12 236.8 kbps DL & UL
• GPRS: Multi Slot Class 10 85.6 kbps DL & UL
• Frequency Bands: 4G/LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 5G Bands: For 5G: N1, N2, N3, N5, N7, N8, N12, N20, N25, N28, N38, N40, N41, N48, N66, N71, N77, N78, N79
• If you want to see if the router is compatible with your provider on the signal side, see what 4G/LTE/5G bands your provider will use and compare to what is available. It will be very hard to find a provider that is not compatible with this product.
•  External Connectors
• 1 x DC Jack for Power Input (110-220V input, 12V DC output, 12-30VDC Range Input) (Recommended inline fuse for vehicle installations: 3A fast-blow)} Includes a 12 Volts DC output 110/120 Volts 3.5 AMPS fully UL certified AC Wall Power Adapter
• 4 x RJ45 for LAN ports 10/100/1000 GIGABIT (can be used as multi WAN ports)  1 x RJ45 for WAN port 10/100/1000 GIGABIT (can be used as a LAN port)
• 1 x Read USB 2.0 Port + 1 x SIDE USB 3.0 Port
• 1 x Factory Default Reset Button
• 5 x 5 dBi Premium External SMA Antennas for WiFi
• 4 x 5 dBi Premium Wide Band External SMA Antennas for 3G/4G/LTE/5G cellular signal Note this model uses 4 x Cellular Antennas that are included.
• 2 x 4FF SIM Slots (small nano SIM card), You must get SIM card from provider or current device, contact MOFI Network for more info if needed Physical Dimension
• 260 mm x 140 mm x 33 mm (10in x 5.5in x 1.3in)
• Weight 340gram or 1.6 lb
•
